Welcome to Supertechina (Shanghai) Electronic Co., Ltd. We would like to support you in flash storage products, industrial flash storage produccts and professional customized flash storage solution & service.
Industrial SD card, Industrial Micro SD card, Industrial CF card, Industrial eMSD
Industrial extended CF card
Supertechina industrial extended CF card adopted original and good die SLC/MLC nand flash chips and specific controllers which assured stable and high compatibility. In addition, special materials are used in special hard situation in order to assure that memory card can be used in extremely hot and cold temperature.
| Specification: | |
| Capacity: | 32MB/64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB |
| Nand flash chips kinds: | SLC/MLC |
| Nand flash chips grades: | Original and good die |
| Compliant with: | Compact Flash specification |
| Standard CF socket device | |
| Industrial special material to keep cards to work best in extremely cold and hot working temperature | |
| Data and files in industrial extended cards well protected in extremely cold and hot temperature | |
| SLC or MLC original flash chips | |
| Strong compatibility controllers and solution | |
| Industrial production procedure | |
| Severe quality control and serious testing required | |
| Connector pin: | 50 pins |
| Operating Modes: | PC Card Memory Mode |
| PC Card I/ O Mode | |
| True-IDE Mode Non-volatile solid-state | |
| Support UDMA | |
| Support firmware ISP(in system programming) function, firmware upgradeable | |
| Compatibility: | Digital cameras, digital video cameras, digital MP3 music players, smart phones, PDAs, computers, notebooks, card readers and others that use compact flash compliant slot |
Technical parameter: |
|
| Humidity: | 8% to 95%, non-condensing |
| MTBF: | >1, 000, 000 hours |
| Low Power Consumption | (<50mA) |
| Clock speed: | 20Mhz max |
| Voltage range for operating: | 2.7~3.6V |
| Variable clock rate: | 0~25MHz |
| Storage temperature: | -40 ℃ - 100 ℃ |
| Regular operating temperature: | -25 ℃ - 85 ℃ |
| Extended operating temperature: | -40 ℃ - 85 ℃ |
| Vibration: | 15Gs peak-to-peak |
| Shock: | 1, 000g/Max |
Certificate: |
|
| CE | |
| FCC | |
| ROHS | |
Quality warranty term: |
|
| 5 years | |
Industrial regular CF card
Supertechina industrial regular CF card adopted original and good die SLC/MLC nand flash chips and specific controllers which assured stable and high compatibility.
| Specification: | |
| Capacity: | 32MB/64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB |
| Nand flash chips kinds: | SLC/MLC |
| Nand flash chips grades: | Original and good die |
| Compliant with: | Compact Flash specification |
| Standard CF socket device | |
| Strong compatibility controllers and solution | |
| Industrial production procedure | |
| Severe quality control and serious testing required | |
| Connector pin: | 50 pins |
| Operating Modes: | PC Card Memory Mode |
| PC Card I/ O Mode | |
| True-IDE Mode Non-volatile solid-state | |
| Support UDMA | |
| Support firmware ISP(in system programming) function, firmware upgradeable | |
| Compatibility: | Digital cameras, digital video cameras, digital MP3 music players, smart phones, PDAs, computers, notebooks, card readers and others that use compact flash compliant slot |
Technical parameter: |
|
| Humidity: | 8% to 95%, non-condensing |
| MTBF: | >1, 000, 000 hours |
| Low Power Consumption | (<50mA) |
| Clock speed: | 20Mhz max |
| Voltage range for operating: | 2.7~3.6V |
| Variable clock rate: | 0~25MHz |
| Storage temperature: | -25 ℃ - 85 ℃ |
| Operating temperature: | 0 ℃ - 70 ℃ |
| Vibration: | 15Gs peak-to-peak |
| Shock: | 1, 000g/Max |
Certificate: |
|
| CE | |
| FCC | |
| ROHS | |
Quality warranty term: |
|
| 5 years | |
Industrial extended Micro SD card
Supertechina extended Micro SD card adopted original and good die SLC/MLC/TLC-3D nand flash chips and specific controllers which assured stable and high compatibility. In addition, special materials are used in special hard situation in order to assure that memory card can be used in extremely hot and cold temperature.
| Specification: | |
| Capacity: | 32MB/64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB/256GB |
| Micro SD card kinds: | Micro SD card, Micro SDHC card, Micro SDXC card |
| Nand flash chips kinds: | SLC/MLC/TLC-3D |
| Nand flash chips grades: | Original and good die |
| Industrial special material to keep cards to work best in extremely cold and hot working temperature | |
| Data and files in industrial extended cards well protected in extremely cold and hot temperature | |
| SLC or MLC original flash chips | |
| Strong compatibility controllers and solution | |
| Industrial production procedure | |
| Severe quality control and serious testing required | |
| Support CPRM(Content Protection for Recordable Media) | |
| Support In System Programming (ISP) function to load the firmware | |
| Supports power down commands and sleep modes | |
| Low power consumption: | Automatic power down and automatic wake up, smart power management |
| Non-volatile storage and no battery required | |
| Low weight | |
| Noiseless | |
| Low profile | |
Technical parameter: |
|
| Humidity: | 8% to 95%, non-condensing |
| MTBF: | >1, 000, 000 hours |
| Durability: | Minimum 10, 000 insertion/removal cycles |
| Voltage range for communication: | 2.0~3.6V |
| Voltage range for operating: | 2.7~3.6V |
| Variable clock rate: | 0~25MHz |
| Storage temperature: | -40 ℃ - 100 ℃ |
| Regular operating temperature: | -25 ℃ - 85 ℃ |
| Extended operating temperature: | -40 ℃ - 85 ℃ |
| Shock: | 1, 000g/Max |
Certificate: |
|
| CE | |
| FCC | |
| ROHS | |
Quality warranty term: |
|
| 5 years | |

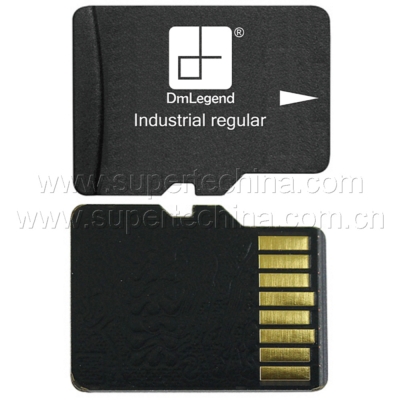

Industrial regular SLC Micro SD card
Supertechina industrial regular Micro SD card adopted original and good die SLC nand flash chips and specific controllers which assured stable and high compatibility.
|
Specification: |
|
|
Capacity: |
128MB/256MB/512MB |
|
Micro SD card kinds: |
Micro SD card |
|
Nand flash chips kinds: |
SLC |
|
Nand flash chips grades: |
Original and good die |
|
Controller: |
AX215D |
|
Strong compatibility controllers and solution |
|
|
Industrial production procedure |
|
|
Severe quality control and serious testing required |
|
|
Support CPRM(Content Protection for Recordable Media) |
|
|
Support In System Programming (ISP) function to load the firmware |
|
|
Supports power down commands and sleep modes |
|
|
Low power consumption: |
Automatic power down and automatic wake up, smart power management |
|
Non-volatile storage and no battery required |
|
|
Low weight |
|
|
Noiseless |
|
|
Low profile |
|
|
|
|
|
Humidity: |
8% to 95%, non-condensing |
|
MTBF: |
>1, 000, 000 hours |
|
Durability: |
Minimum 10, 000 insertion/removal cycles |
|
Voltage range for communication: |
2.0~3.6V |
|
Voltage range for operating: |
2.7~3.6V |
|
Variable clock rate: |
0~25MHz |
|
Storage temperature: |
-55 ºC - 95 ºC |
|
Operating temperature: |
-25 ºC - 85 ºC |
|
Shock: |
1, 000g/Max |
|
|
|
|
CE |
|
|
FCC |
|
|
ROHS |
|
|
|
|
|
5 years |
|
Industrial extended SD card
Supertechina industrial extended SD card adopted original and good die SLC/MLC/TLC-3D nand flash chips and specific controllers which assured stable and high compatibility. In addition, special materials are used in special hard situation in order to assure that memory card can be used in extremely hot and cold temperature.
| Specification: | |
| Capacity: | 32MB/64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB |
| SD card kinds: | SD card, SDHC card, SDXC card |
| Nand flash chips kinds: | SLC/MLC/TLC-3D |
| Nand flash chips grades: | Original and good die |
| Industrial special material to keep cards to work best in extremely cold and hot working temperature | |
| Data and files in industrial extended cards well protected in extremely cold and hot temperature | |
| Strong compatibility controllers and solution | |
| Industrial production procedure | |
| Severe quality control and serious testing required | |
| Support CPRM(Content Protection for Recordable Media) | |
| Support In System Programming (ISP) function to load the firmware | |
| Supports power down commands and sleep modes | |
| Low power consumption: | Automatic power down and automatic wake up, smart power management |
| Non-volatile storage and no battery required | |
| Low weight | |
| Noiseless | |
| Low profile | |
Technical parameter: |
|
| Humidity: | 8% to 95%, non-condensing |
| MTBF: | >1, 000, 000 hours |
| Durability: | Minimum 10, 000 insertion/removal cycles |
| Voltage range for communication: | 2.0~3.6V |
| Voltage range for operating: | 2.7~3.6V |
| Variable clock rate: | 0~25MHz |
| Storage temperature: | -65 ºC - 100 ºC |
| Regular operating temperature: | -25 ℃ - 85 ℃ |
| Extended operating temperature: | -40 ℃ - 85 ℃ |
| Shock: | 1, 000g/Max |
Certificate: |
|
| CE | |
| FCC | |
| ROHS | |
Quality warranty term: |
|
| 5 years | |

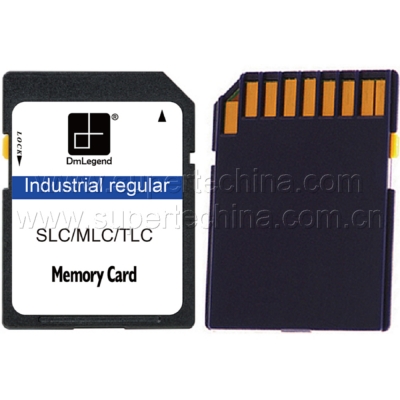

Industrial regular SD card
Supertechina industrial regular SD card adopted original and good die SLC/MLC/3D TLC nand flash chips and specific controllers which assured stable and high compatibility.
| Specification: | |
| Capacity: | 32MB/64MB/128MB/256MB/512MB/1GB/2GB/4GB/8GB/16GB/32GB/64GB/128GB |
| SD card kinds: | SD card, SDHC card, SDXC card |
| Nand flash chips kinds: | SLC/MLC/TLC-3D |
| Nand flash chips grades: | Original and good die |
| Strong compatibility controllers and solution | |
| Industrial production procedure | |
| Severe quality control and serious testing required | |
| Support CPRM(Content Protection for Recordable Media) | |
| Support In System Programming (ISP) function to load the firmware | |
| Supports power down commands and sleep modes | |
| Low power consumption: | Automatic power down and automatic wake up, smart power management |
| Non-volatile storage and no battery required | |
| Low weight | |
| Noiseless | |
| Low profile | |
Technical parameter: |
|
| Humidity: | 8% to 95%, non-condensing |
| MTBF: | >1, 000, 000 hours |
| Durability: | Minimum 10, 000 insertion/removal cycles |
| Voltage range for communication: | 2.0~3.6V |
| Voltage range for operating: | 2.7~3.6V |
| Variable clock rate: | 0~25MHz |
| Storage temperature: | -55 ºC - 95 ºC |
| Operating temperature: | -25 ºC - 85 ºC |
| Shock: | 1, 000g/Max |
Certificate: |
|
| CE | |
| FCC | |
| ROHS | |
Quality warranty term: |
|
| 5 years | |
