Welcome to Supertechina (Shanghai) Electronic Co., Ltd. We would like to support you in flash storage products, industrial flash storage produccts and professional customized flash storage solution & service.

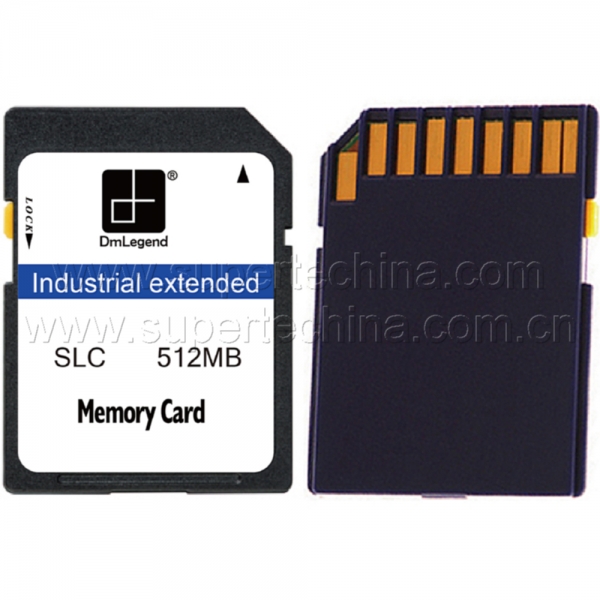

Industrial extended SLC SD card (S1A-1515D) Featured

Industrial extended SLC SD card Industrial extended SLC SD card

Industrial SLC extended SD card

Supertechina industrial extended SLC SD card adopted original and good die SLC nand flash chips and specific controllers which assured stable and high compatibility. In addition, special materials are used in special hard situation in order to assure that memory card can be used in extremely hot and cold temperature.


Specification:
Capacity: 128MB/256MB/512MB
SD card kinds: SD card
Nand flash chips kinds: SLC
Nand flash chips grades: Original and good die
Industrial special material to keep cards to work best in extremely cold and hot working temperature
Data and files in industrial extended cards well protected in extremely cold and hot temperature
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing required
Support CPRM(Content Protection for Recordable Media)
Support In System Programming (ISP) function to load the firmware
Supports power down commands and sleep modes
Low power consumption:   Automatic power down and automatic wake up, smart power management
Non-volatile storage and no battery required
Low weight
Noiseless
Low profile

Technical parameter:
Humidity:   8% to 95%, non-condensing
MTBF:  >1, 000, 000 hours
Durability: Minimum 10, 000 insertion/removal cycles
Voltage range for communication:      2.0~3.6V
Voltage range for operating:  2.7~3.6V
Variable clock rate: 0~25MHz
Storage temperature:  -65 ºC - 100 ºC
Regular operating temperature: -25 ℃ - 85 ℃
Extended operating temperature:  -40 ℃ - 85 ℃
Shock: 1, 000g/Max

Certificate:
CE
FCC
ROHS

Quality warranty term:
5 years
