Customized Micro UDP USB3.0 flash drive chip with switch

Supertechina UDP USB flash drive is composed of UDP USB flash drive chip and USB flash drive cases. UDP USB flash drive chip is very slim and short, so it can be used in very short and small USB flash drive cases which is nice. UDP USB flash drive chips is more stable in quality than traditional USB flash drive based on new production skills.

Supertechina UDP USB3.0 flash drive chip choose latest good quality nand flash chips and controllers in order to assure stable highest writing and reading speed performance.

Specification:

USB3.0 flash drive chip

With switch to control the USB flash drive working and non-working

Suite for industrial usage and remote control

Minimum length:

15.1 mm

Capacity:

8GB/16GB/32GB/64GB/128GB/256GB/512GB

USB interface standard:

- USB3.0
- Compatible with USB2.0 & USB1.1

Reading and writing speed:

- up to 5Gbps
- 10 times speed than the speed of USB2.0

Full duplex transmission mode:

- Adopt a new bi-directional data transfer mode
- Communication parties can simultaneously send and receive data in order to transfer the data with higher speed

Characteristics:

- A new production method for USB flash drive
- Flash chip is assembled on board together with controller, solution and accordingly software tackling
- The assembled board can be used for whole USB flash drive function, also can be assembled in almost USB flash drive cases
- Based on this production procedure, the defect ratio is pretty fewer and the quality is more stable than regular SMT production
- Super thin and small size
- Better water-proof and shock resistance function
- Difficult fixed

Color:

Black & blue

Material:

Plastic

Powered by USB bus directly

Hot plug & play

Shake protection

Electromagnetic wave protection

Support:

USB HDD, USB ZIP dual boot mode

Function available:

Password protection function, auto-run function, bootable function, Readyboost function and data protection function

Compatible with:

Windows 98/ME, 2000/XP/Vista, Mac OS 9. X/X, Linux 2.4X or above versions


Technical parameter:

Erase cycles:

1,000,000 times

Minimum data retention:

10 years

Operating Humidity:

20% - 90%

Storage Humidity:

20% - 93%

Storage temperature:

-20ºC to +55ºC

Operating temperature:

-10ºC to +55ºC

Shock resistance:

1,000 g


Certificate:

CE

FCC

ROHS


Quality warranty term:

5 years

Industrial SLC 512MB eMSD

eMSD is an embedded storage solution designed in an LGA-8 package form. The operation of eMSD is similar to an SD card which is an industry standard. eMSD consists of an industrial standard NAND flash chip and a high reliable controller. 3.3V supply voltage is required for the NAND area (VCC).
eMSD is fully compliant with SD 2.0 interface which allows most of general CPU to utilize and provides high reliability, high quality and ultra low power consumption at competitive cost.

Supertechina eMSD adpoted original SLC nand flash chips and specific controllers which assures stable compatibility and quality. Supertechina can provide strong support in industrial usage and production procedure to our clients.


Specification:
The smallest Micro SD card
Emmedded Micro SD card
Same function as Micro SD card
Dimension: 7.8(L)*6.0(W)*0.8(H) mm
Capacity: 512MB
Nand flash chips: SLC Nand flash chips
original and good die
Controller:                 AX
Package: LAG-8 (Land Grid Array)
SD version: SD1.1, SD2.0
Class: C4/C6/C10 supported
SD/SPI mode supported
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing required
Compliant with Secure Digital Music Initiative (SDMI)
SD Memory Card protocol compatible
Support CPRM(Content Protection for Recordable Media)
Support Error Correcting Code (ECC) function to detect and correct errors
Support In System Programming (ISP) function to load the firmware
Supports power down commands and sleep modes
Low power consumption: Automatic power down and automatic wake up, smart power management
Non-volatile storage and no external programming voltage required
Low weight
Noiseless

Technique parameters:
Voltage: Basic communication (CMD0, CMD15, CMD55, ACMD41): 2.0 - 3.6V
Other command and memory access: 2.7 - 3.6V
Regular operating temperature: 0°C to 70°C (Operation)
-15°C to 85°C (Storage)

Certificate:
CE
FCC
ROHS

Quality warranty term:

5 years

Industrial SLC 128MB eMSD

eMSD is an embedded storage solution designed in an LGA-8 package form. The operation of eMSD is similar to an SD card which is an industry standard. eMSD consists of an industrial standard NAND flash chip and a high reliable controller. 3.3V supply voltage is required for the NAND area (VCC).
eMSD is fully compliant with SD 2.0 interface which allows most of general CPU to utilize and provides high reliability, high quality and ultra low power consumption at competitive cost.

Supertechina eMSD adpoted original SLC nand flash chips and specific controllers which assures stable compatibility and quality. Supertechina can provide strong support in industrial usage and production procedure to our clients.


Specification:
The smallest Micro SD card
Emmedded Micro SD card
Same function as Micro SD card
Dimension: 7.8(L)*6.0(W)*0.8(H) mm
Capacity: 128MB
Nand flash chips: SLC Nand flash chips
original and good die
Controller:                 AX
Package: LAG-8 (Land Grid Array)
SD version: SD1.1, SD2.0
Class: C4/C6/C10 supported
SD/SPI mode supported
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing required
Compliant with Secure Digital Music Initiative (SDMI)
SD Memory Card protocol compatible
Support CPRM(Content Protection for Recordable Media)
Support Error Correcting Code (ECC) function to detect and correct errors
Support In System Programming (ISP) function to load the firmware
Supports power down commands and sleep modes
Low power consumption: Automatic power down and automatic wake up, smart power management
Non-volatile storage and no external programming voltage required
Low weight
Noiseless

Technique parameters:
Voltage: Basic communication (CMD0, CMD15, CMD55, ACMD41): 2.0 - 3.6V
Other command and memory access: 2.7 - 3.6V
Regular operating temperature: 0°C to 70°C (Operation)
-15°C to 85°C (Storage)

Certificate:
CE
FCC
ROHS

Quality warranty term:

5 years

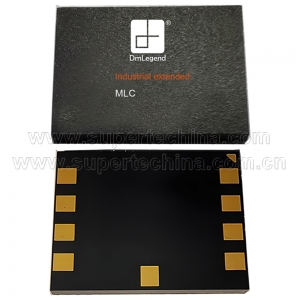

Industrial MLC 4GB eMSD

eMSD is an embedded storage solution designed in an LGA-8 package form. The operation of eMSD is similar to an SD card which is an industry standard. eMSD consists of an industrial standard NAND flash chip and a high reliable controller. 3.3V supply voltage is required for the NAND area (VCC).
eMSD is fully compliant with SD 2.0 interface which allows most of general CPU to utilize and provides high reliability, high quality and ultra low power consumption at competitive cost.

Supertechina eMSD adpoted original MLC nand flash chips and specific controllers which assures stable compatibility and quality. Supertechina can provide strong support in industrial usage and production procedure to our clients.


Specification:
The smallest Micro SD card
Emmedded Micro SD card
Same function as Micro SD card
Dimension: 8(L)*6.2(W)*0.8(H) mm
Capacity: 4GB
Nand flash chips: MLC Nand flash chips
original and good die
Controller:                 SMI
Package: LAG-8 (Land Grid Array)
SD version: SD1.1, SD2.0
Class: C4/C6/C10 supported
SD/SPI mode supported
Strong compatibility controllers and solution
Industrial production procedure
Severe quality control and serious testing required
Compliant with Secure Digital Music Initiative (SDMI)
SD Memory Card protocol compatible
Support CPRM(Content Protection for Recordable Media)
Support Error Correcting Code (ECC) function to detect and correct errors
Support In System Programming (ISP) function to load the firmware
Supports power down commands and sleep modes
Low power consumption: Automatic power down and automatic wake up, smart power management
Non-volatile storage and no external programming voltage required
Low weight
Noiseless

Technique parameters:
Voltage: Basic communication (CMD0, CMD15, CMD55, ACMD41): 2.0 - 3.6V
Other command and memory access: 2.7 - 3.6V
Regular operating temperature: 0°C to 70°C (Operation)
-15°C to 85°C (Storage)

Certificate:
CE
FCC
ROHS

Quality warranty term:

5 years

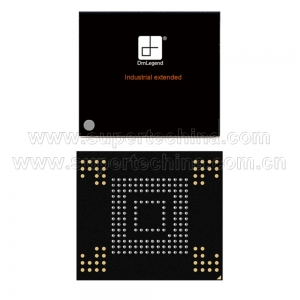

Industrial extended 32GB eMMC

The eMMC refers to embedded multimedia card which puts the MMC components (flash memory plus controller) into a small ball grid array (BGA) package for use in circuit boards as an embedded non-volatile memory system. A vast majority of mobile devices use this form of flash for main storage on the device.

Supertechina eMMC adopted high graded nand flash chips and latest controllers to assure good compatibility with mobile phone, car navigators and other professional equipment and can work in severe cold and hot environment.


Specification:
Dimension: 11.5(L)*13.0(W)*1.0(H)mm
Capacity: 32GB
Structure: Nand flash chips + controllers
Nand flash chips grades:                 Original and good die
Nand flash chips kinds: SLC, MLC, TLC (2D and 3D)
eMMC standard: EMMC ver5.1
Bus width: 1 bit, 4 bit, 8 bit
Support:

- JEDEC
- 12 wire bus (CLK, CMD, Data Strobe, DAT[7:0] and hardware reset (RST_n))
- Single Data Rate(SDR) and Dual Data Rate(DDR)
- Original Boot and Alternative Boot modes
- Data Removal (Erase, Trim and Sanitize)
- Replay Protected Memory Block(RPMB)
- Multiple Partitions with enhanced attribute
- Lock/Unlock and Write Protection
- Data Protection for Power Failure
- Power Saving Sleep Mode
- High Priority Interrupt(HPI)
- Background Operation
- Packed Commands
- Sampling Tuning Sequence
- Dynamic Power Manager : standby and sleep modes
- 3.3V/1.8V power supply
Up to 200mHZ clock speed

Technique parameters:
Operating voltage: - VCC = 2.7V~3.6V (typical 3.3V)
- VCCQ = 1.7V~1.95V(typical 1.8V), 2.7V~3.6V (typical 3.3V)
Regular operating temperature: -25 ℃ - 85 ℃
Extended operating temperature: -40 ℃ - 85 ℃
Storage temperature: -40 ℃ - 100 ℃

Certificate:
CE
FCC
ROHS

Quality warranty term:

5 years

Industrial extended 16GB eMMC

The eMMC refers to embedded multimedia card which puts the MMC components (flash memory plus controller) into a small ball grid array (BGA) package for use in circuit boards as an embedded non-volatile memory system. A vast majority of mobile devices use this form of flash for main storage on the device.

Supertechina eMMC adopted high graded nand flash chips and latest controllers to assure good compatibility with mobile phone, car navigators and other professional equipment and can work in severe cold and hot environment.


Specification:
Dimension: 11.5(L)*13.0(W)*1.0(H)mm
Capacity: 16GB
Structure: Nand flash chips + controllers
Nand flash chips grades:                 Original and good die
Nand flash chips kinds: SLC, MLC, TLC (2D and 3D)
eMMC standard: EMMC ver5.1
Bus width: 1 bit, 4 bit, 8 bit
Support:

- JEDEC
- 12 wire bus (CLK, CMD, Data Strobe, DAT[7:0] and hardware reset (RST_n))
- Single Data Rate(SDR) and Dual Data Rate(DDR)
- Original Boot and Alternative Boot modes
- Data Removal (Erase, Trim and Sanitize)
- Replay Protected Memory Block(RPMB)
- Multiple Partitions with enhanced attribute
- Lock/Unlock and Write Protection
- Data Protection for Power Failure
- Power Saving Sleep Mode
- High Priority Interrupt(HPI)
- Background Operation
- Packed Commands
- Sampling Tuning Sequence
- Dynamic Power Manager : standby and sleep modes
- 3.3V/1.8V power supply
Up to 200mHZ clock speed

Technique parameters:
Operating voltage: - VCC = 2.7V~3.6V (typical 3.3V)
- VCCQ = 1.7V~1.95V(typical 1.8V), 2.7V~3.6V (typical 3.3V)
Regular operating temperature: -25 ℃ - 85 ℃
Extended operating temperature: -40 ℃ - 85 ℃
Storage temperature: -40 ℃ - 85 ℃

Certificate:
CE
FCC
ROHS

Quality warranty term:

5 years

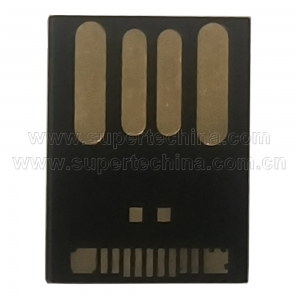

Micro UDP USB3.0 flash drive chip with OTG gold finger

Supertechina UDP USB flash drive is composed of UDP USB flash drive chip and USB flash drive cases. UDP USB flash drive chip is very slim and short, so it can be used in very short and small USB flash drive cases which is nice. UDP USB flash drive chips is more stable in quality than traditional USB flash drive based on new production skills.

Supertechina UDP USB3.0 flash drive chip choose latest good quality nand flash chips and controllers in order to assure stable highest writing and reading speed performance.

Specification:

USB flash drive chip

With OTG gold finger which can weld type C and Micro USB interface directly

Suite for small and super slim USB flash drive case

Minimum length:

15.1 mm

Capacity:

8GB/16GB/32GB/64GB/128GB/256GB

USB interface standard:

- USB3.0
- Compatible with USB2.0 & USB1.1

Reading and writing speed:

- up to 5Gbps
- 10 times speed than the speed of USB2.0

Full duplex transmission mode:

- Adopt a new bi-directional data transfer mode
- Communication parties can simultaneously send and receive data in order to transfer the data with higher speed

Characteristics:

- A new production method for USB flash drive
- Flash chip is assembled on board together with controller, solution and accordingly software tackling
- The assembled board can be used for whole USB flash drive function, also can be assembled in almost USB flash drive cases
- Based on this production procedure, the defect ratio is pretty fewer and the quality is more stable than regular SMT production
- Super thin and small size
- Better water-proof and shock resistance function
- Difficult fixed

Color:

Black & blue

Material:

Plastic

Powered by USB bus directly

Hot plug & play

Shake protection

Electromagnetic wave protection

Support:

USB HDD, USB ZIP dual boot mode

Function available:

Password protection function, auto-run function, bootable function, Readyboost function and data protection function

Compatible with:

Windows 98/ME, 2000/XP/Vista, Mac OS 9. X/X, Linux 2.4X or above versions


Technical parameter:

Erase cycles:

1,000,000 times

Minimum data retention:

10 years

Operating Humidity:

20% - 90%

Storage Humidity:

20% - 93%

Storage temperature:

-20ºC to +55ºC

Operating temperature:

-10ºC to +55ºC

Shock resistance:

1,000 g


Certificate:

CE

FCC

ROHS


Quality warranty term:

5 years

SODIMM DDR4 2400 8GB laptop ram

Supertechina ram memory used original and good die nand flas chips in order to assure the quality.


Specification:
Memory capacity: 8GB
Memory type: DDR4 SDRAM
Memory clock speed:  2133/2400Mhz
Transmission standards:        NB4-17000/NB4-19200
Slot type: SODIMM
Pin:  260/288pin
Features:  Unbuffered
Memory CAS latency: CL15/CL17/CL19
Memory CAS latency:  Dual
Date integrity check: Non ECC memory
Chipset: Hynix, NY, KST, SEC, MT, EPD etc.
Application: Laptop
Compatiblity: All motherborads of laptop

Technique parameters:
Clock Cycle Time(tCK): CL=4: 3ns (min.)/8ns (max. )
Row Cycle Time(tRC):  60ns (min. )
Refresh to Active:  127.5ns
Row Active Time (tRAS): 36ns (min. )/70,000ns (max. )
Single Power Supply of:  +1.2V (+/-0.1V)
Power: 2.125 W (operating per module)
UL Rating: 94 V to 0
Operating Temperature:  0 C to 55 C
Storage Temperature:  -55 C to +125 C

Certificate:
CE
FCC
ROHS

Quality warranty term:
5 years

Long DIMM DDR4 2400 8GB desktop ram

Supertechina ram memory used original and good die nand flas chips in order to assure the quality.


Specification:
Memory capacity: 8GB
Memory type: DDR4 SDRAM
Memory clock speed:  2133/2400Mhz
Transmission standards:        PC4-17000/PC4-19200
Slot type: Long DIMM
Pin:  260/288pin
Features:  Unbuffered
Memory CAS latency: CL15/CL17/CL19
Memory CAS latency:  Dual
Date integrity check: Non ECC memory
Chipset: Hynix, NY, KST, SEC, MT, EPD etc.
Application: Desktop
Compatiblity: All motherborads of desktop

Technique parameters:
Clock Cycle Time(tCK): CL=4: 3ns (min.)/8ns (max. )
Row Cycle Time(tRC):  60ns (min. )
Refresh to Active:  127.5ns
Row Active Time (tRAS): 36ns (min. )/70,000ns (max. )
Single Power Supply of:  +1.2V (+/-0.1V)
Power: 2.125 W (operating per module)
UL Rating: 94 V to 0
Operating Temperature:  0 C to 55 C
Storage Temperature:  -55 C to +125 C

Certificate:
CE
FCC
ROHS

Quality warranty term:
5 years



Type C OTG USB3.0 flash drive


Specification:

Type C interface instead of Micro USB interface

Capacity:   8GB/16GB/32GB/64GB/128GB/256GB

Interface:  USB type C

                USB3.0, Compatible with USB2.0

Available for all type C smart phone with OTG function

Support extra MicroSD card expansion

Can work as USB flash drive

The simple transmission way of files between mobile phone and mobile phone, mobile phones and computers, mobile phones and tablet PCS.

Images and data of smart phones can be directly placed into the computer and operated between mobile phones and computers.

Support cross-platform conversion.

The dual-interface specification, can also be used on the computer

Hot plug & play

Shake protection

Electromagnetic wave protection

Password protection function, auto-run function, bootable function, Readyboost function and data protection function available

Supports USB HDD, USB ZIP dual boot mode

Compatibility: Android/Windows/OS X/Mac/Linux

Other smartphones with OTG Function

Can be operated especially in the following situations:

In the case of network, such as aircraft, basement or no signal.

In the absence of any computer.

The transmission of video and pictures or share large files. Powered by USB bus directly

Notes:



This smartphone OTG USB flash drive must be with type C port and need to hardware support for OTG function of smart phone.


Technique parameters:

Power: USB bus powered(4.5V~5.5V)

Erase cycles: 1, 000, 000 times

Minimum data retention: 10 years

Operation temperature range: -10º C to +55º C

Storage temperature range: -20º C to +55º C

Operating Humidity: 20% - 90%

Storage Humidity: 20% - 93%

Shock resistance: 1, 000 g


Certificate:

CE

FCC

ROHS


Quality warranty term:

5 year

Page 1 of 13

Copyright © 2000-2022        Supertechina (Shanghai) Electronic Co., Ltd.        All rights reserved
Telephone: +86-21 59965712 59967690 59967818       Fax: +86-21 59995909              Email: This email address is being protected from spambots. You need JavaScript enabled to view it. This email address is being protected from spambots. You need JavaScript enabled to view it.
沪ICP备09065519号
